Match Existing Truss

To match trusses to an existing trussed roof we need the following information for an accurate fit.

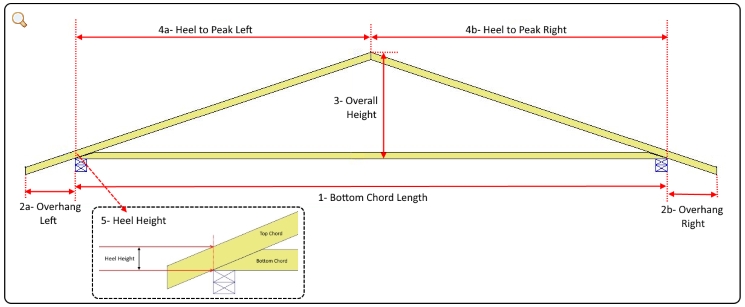

For Top Chord Overhangs

match tcoh 745x300

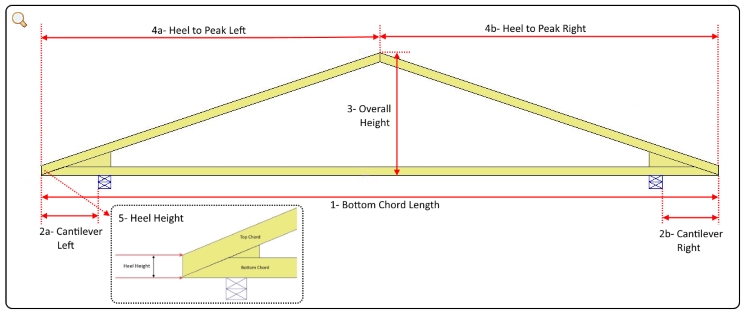

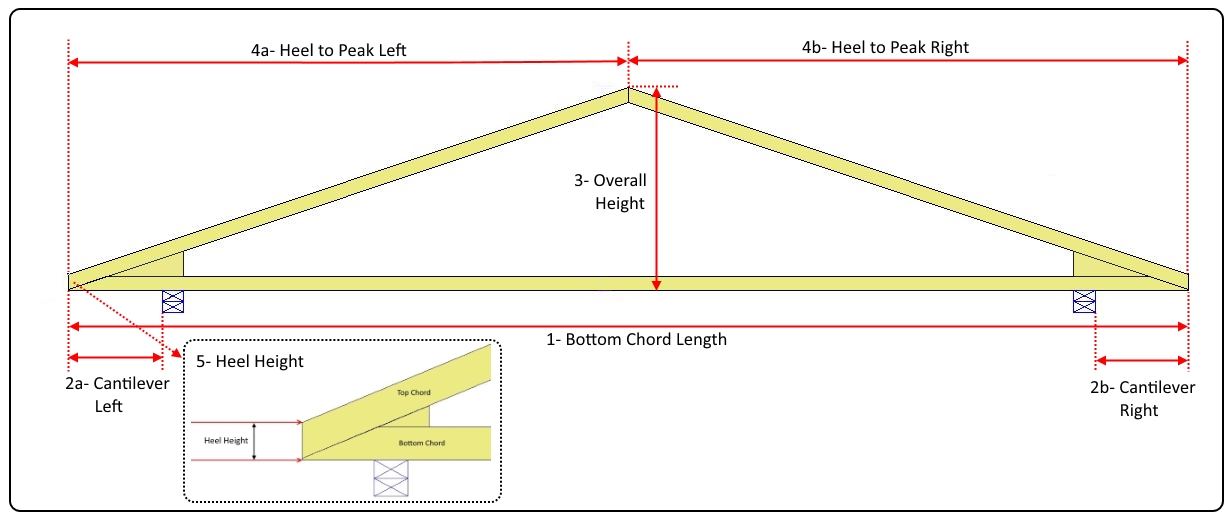

For Cantilever Overhangs

match cant 745x314

  1. Lenght of the bottom chord.
  2. Length of the overhang or cantilever, not including the fascia. If both sides are not the same we need both sides.
  3. The overall height from the bottom of the bottom chord to the peak
  4. Length from the heel to the peak. If the peak is not centered we need both sides.
  5. The heel height. If the peak is not centered the heel could be different on each side.
